Description

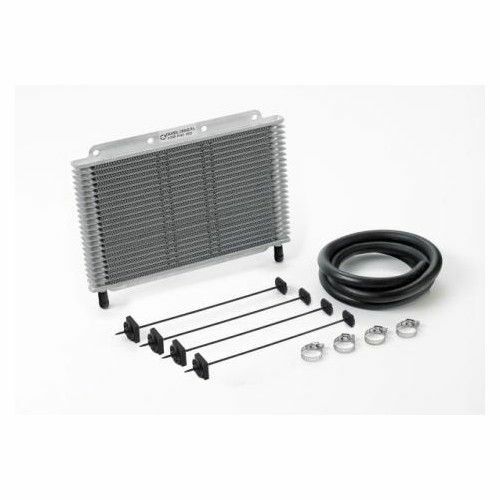

TRANMISSION OIL COOLER 21PLATE HYDRA-COOL (PART #678)
The Hydra-Cool® transmission oil cooler is an effective & economical way to keep the transmission at its optimum operating temperature. High efficiency turbulators in each tube direct the fluid for superior heat transfer. Hydra-Cool's® unique plate & fin design allows for effective cooling, yet requires 33% less space. The Hydra-Cool's® compact design is perfect for applications where available mounting space is limited.
- 100% pressure tested at 150psi for quality assurance
- 33% more efficient than a comparable tube and fin design
- Pre-drilled mounting plates for easy installation
- Internal turbulation for efficient heat transfer
- 3/8” (9 mm) ptheyh-on fittings for quick and easy installation
SPECIFICATIONS
|
|
Overall Size |
Core Size |
|
||||||
| Part # | Thickness mm | Width mm | Height mm | Width mm | Height mm | Inlet/Outlet Size | Hose Size | Number of Plates | Heat Transfer Rate (BTU/HR) |
|
623 |
20 |
281 |
229 |
247 |
200 |
3/8” (9 mm) |
3/8” (9 mm) 1.4 Meters |
23 |
13,937 |
|
676 |
20 |
281 |
141 |
281 |
112 |
3/8” (9 mm) |
12 |
11,987 |
|
|
677 |
20 |
281 |
180 |
281 |
152 |
3/8” (9 mm) |
17 |
13,394 |
|
|
678/698 |
20 |
281 |
213 |
281 |
184 |
3/8” (9 mm) |
21 |
13,934 |
|
|
679 / 691 |
20 |
281 |
300 |
281 |
265 |
3/8” (9 mm) |
30 |
15,710 |
|
|
690 |
3/8” to 5/16” Adaptor Kit for GM transmissions (sold separately) |
||||||||
COMPONENTS
- Cooler Core x 1
- 3/8" Hose x 1
- Hose Clamps x 4
- Quick Fit Kit Nylon Ties x 4
- Detailed Instructions
Specifications
| Fits Aero Bars: | No |
| Fits Euro SquareBar: | No |
| Fits Rhino Heavy Duty bar: | No |
| Fits Thule SlideBar: | No |
| Fits Thule WingBar: | No |
| Fits Thule Xsporter Pro: | No |
| Locks included: | No |
| Manufacturer SKU: | KS0087 |
| Off Road Suitable: | No |
| Off-road Load limits: | Refer to product fitting instructions or call 1300 071 264 |
| One Key System compatible: | No |
| Platform and Trays: | No |
| Reduced Noise: | No |
| Requires Professional installation: | No |
| Ski carrier: | No |
| Product Type: | 4WD PRODUCTS |
| Weight: | 1.000000 |
| Summary: | Transmission Cooler Hydra 21 Plate 678 |
